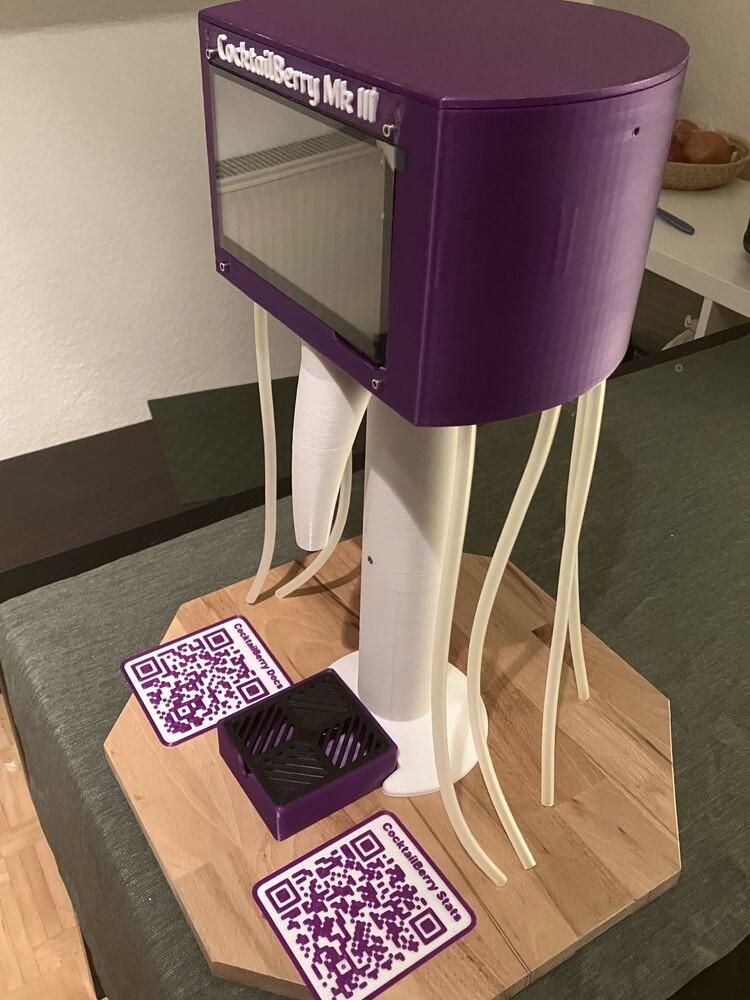

CocktailBerry MK III#
The MK III is the successor to the MK II and the reference build for the CocktailBerry v1 software; the MK IV is the reference build for v2. By moving the wiring onto the CocktailBerryBoard, it achieves a noticeably smaller footprint while keeping the full feature set of its predecessor.
It is fully 3D-printed and designed to be produced on a common 250 × 250 mm print bed.
Released
This machine is released. The full set of 3D-print files (STLs) and the assembly guide are available.
Specifications#
| Property | Value |
|---|---|
| Dispensers | 8 × membrane pumps |
| Display | 7" integrated LCD touchscreen |
| Controller | Raspberry Pi 3 Model B+ (newer models also work) |
| Power | 12 V input; internal transformer powers the Pi |
| Software | CocktailBerry v1 (Qt); also runs v2 |
| Enclosure | Fully 3D-printed (fits a 250 × 250 bed) |
| Dimensions | ⌀ ~240 mm × ~550 mm (H) |
Because the touchscreen is built in, the v1 app is the natural fit, but the machine can also be run with v2.
Base build
The MK III documented here is the base machine. Optional CocktailBerry capabilities - WS281x LEDs, RFID/NFC payment, scale/weight sensing, and carriages - are not part of this build.
Downloads#
The printable and CAD files are attached to each release as a single archive:
- 3D files:
mk3.zip - STL (print-ready) and STEP (CAD) for every part.
Build Guide#
- Needed Parts - what to print, buy, and have ready.
- Preparation - printing, post-processing, and prep work.
- Assembly - putting it all together.
