CocktailBerry 2-Go#

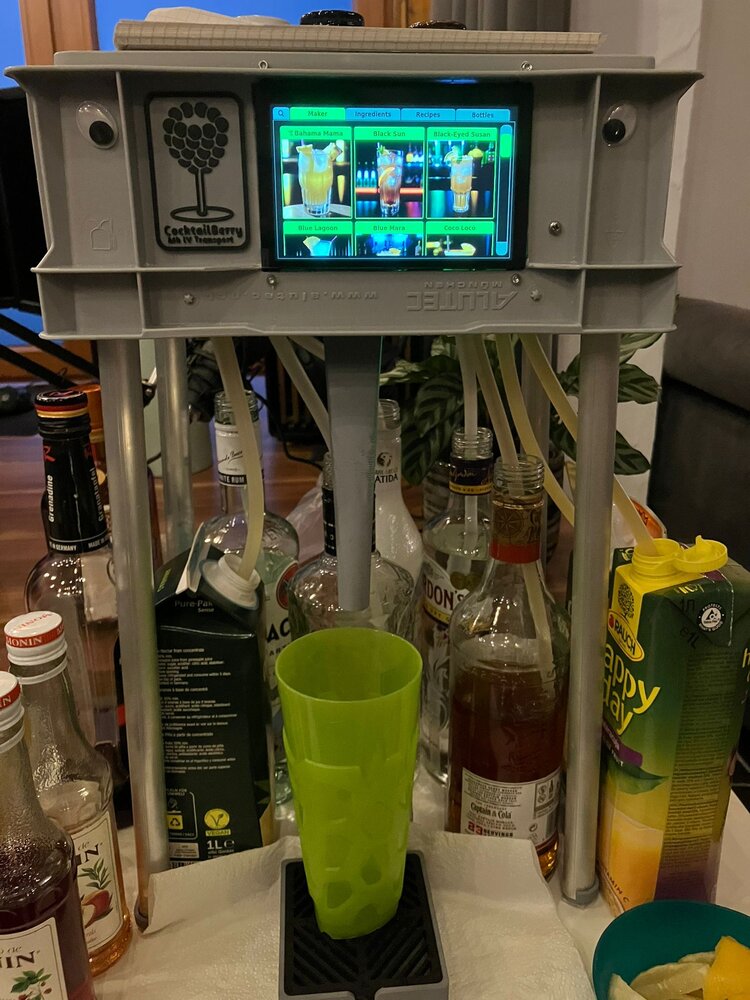

The CocktailBerry 2-Go is a portable, compact CocktailBerry machine. It might not be the prettiest, but it is designed to be easily built and used on the go. It uses a Euro Box enclosure and 3D-printed parts to hold everything together, and it can be powered by a 12 V battery pack for true portability. You can also use a normal 12 V power supply if you don't need to take it on the road. The legs can be detached for easier transport, and the whole thing can be stored in a backpack or small case.
Released
This machine is released. The full set of 3D-print files (STLs) and the assembly guide are available.
Specifications#
| Property | Value |
|---|---|
| Dispensers | 8 × membrane pumps |
| Display | 5" integrated LCD touchscreen or smartphone |
| Controller | Raspberry Pi 3 Model B+ (newer models also work) |
| Power | 12 V input; internal transformer powers the Pi |
| Software | CocktailBerry v1 or v2 (no touchscreen) |
| Enclosure | Euro Box, 3D-printed parts inside |
| Dimensions | 30×20×12 cm (box), ~50 cm high with legs |
Downloads#
The printable and CAD files are attached to each release as a single archive:
- 3D files:
2go.zip - STL (print-ready) and STEP (CAD) for every part.
Build Guide#
- Needed Parts - what to print, buy, and have ready.
- Preparation - printing, post-processing, and prep work.
- Assembly - putting it all together.
